FUEL Vehicle Tags

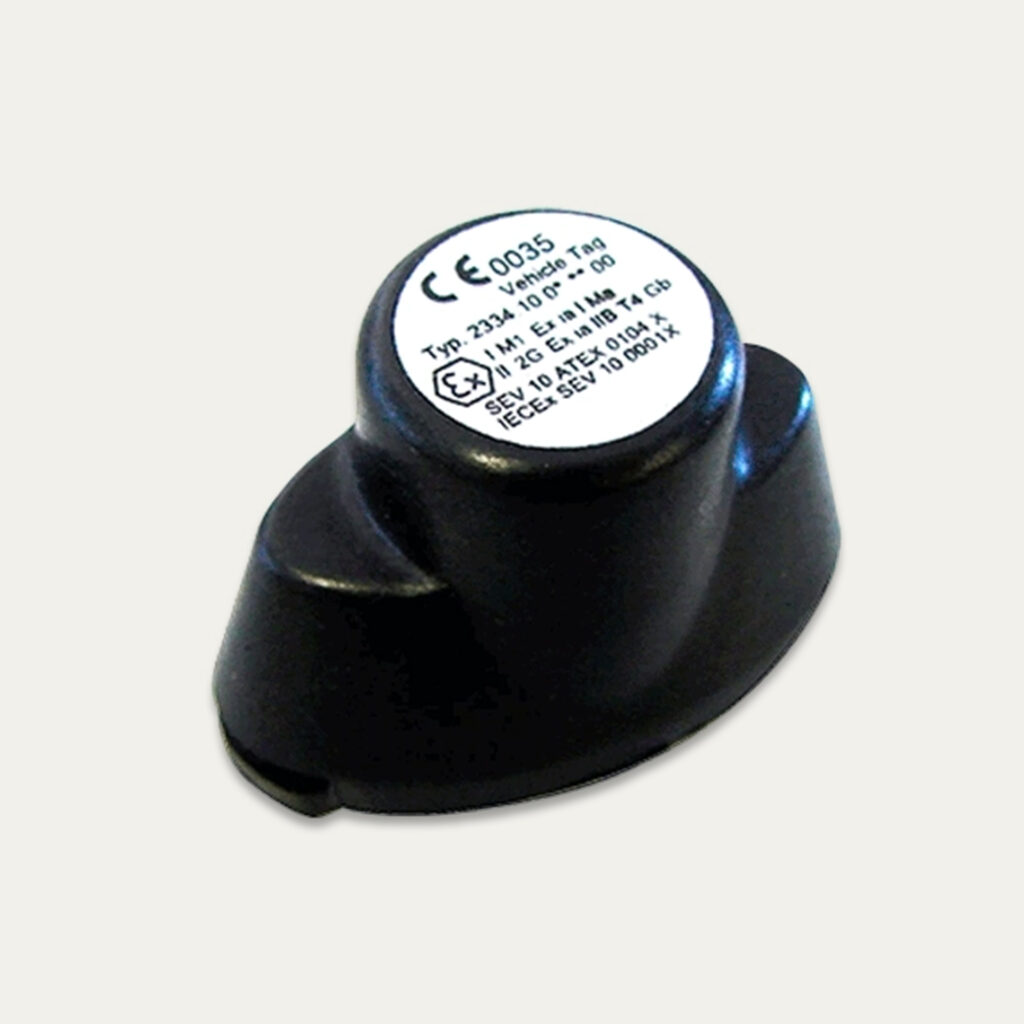

FUEL™ Vehicle Tags are maintenance-free, passive low-frequency RFID tags designed to provide secure and automatic identification of vehicles at fueling stations. These rugged tags are mounted near the vehicle’s fuel inlet and communicate with a Fuel Management System (FMS) via an RFID Nozzle Unit to ensure authorized fueling, track usage, and prevent misfuelling. Ideal for commercial fleets, construction vehicles, and buses, FUEL™ Vehicle Tags eliminate the need for manual data entry while enhancing accuracy, traceability, and operational efficiency. The tag wirelessly transmits a unique vehicle ID and designated fuel type to the FMS, which then verifies authorization and dispenses the correct fuel amount. Designed for harsh conditions, these tags are water- and fuel-proof, resistant to temperature extremes, and feature an anti-tamper mechanism that destroys the tag if removed, preventing misuse or transfer to unauthorized vehicles.
Key Features
Secure Vehicle Identification: Enables automatic vehicle and fuel type recognition, preventing fuel contamination and unauthorized access.
Tamper-Proof Design: Optional self-destruct feature renders the tag unusable if removed from its mounting point.
FEasy Integration: Compatible with fuel management systems using RFID Nozzle Units. Multiple Form Factors: Suitable for various vehicle types and mounting options including sticker, glue, rivets, and metal bands..
Technical Specifications
Operating Frequency: 125 kHz.
Tag Type: Passive Low-Frequency RFID.
Read Range: Short-range, optimized for close-proximity reading at nozzle units.
Durability: Withstands fuel, water, vibration, UV exposure, and temperature fluctuations.
Customization: Options include self-destruct capability, laser engraving, and form factor selection based on vehicle type.
Technical Specifications
Dimensions and Weight:
1.18 × 0.67 × 0.79 in (30 × 17 × 20 mm)
Materials:
PA6 - GF 15%
Frequency:
125 kHz
Protocol:
ISO/IEC 18000-6C, EPC Global C1G2
Chip Type:
HITAG S
Read distance:
Up to 2.7 in (70 mm) with HBN903 Nozzle unit
Data Retention:
Up to 10 Years
Operating Temperature:
-4° to +140° F (-20° to +60° C)
Places of Application
Truck Fleets:
Prevents misfueling and streamlines automated fueling in logistics operations.
Commercial Fleets:
Supports centralized and secure fuel management for large vehicle networks.
Types of Material
PA6 – GF 15%
The tags are constructed using PA6 – GF 15% (Polyamide 6 reinforced with 15% glass fiber), which provides excellent strength, durability, and resistance to chemicals and fuel. This material is well-suited for outdoor and mechanical environments, maintaining stability under temperature and moisture fluctuations while delivering long-term dimensional integrity.
Types of Detailing on Labels/Tags
Logo Printing
Enhance your brand visibility with custom logo printing available on both the front and back of the labels, ensuring a professional and recognizable design for all your products.
Sequential Numbering
Add unique sequential numbers on the label or release paper for accurate tracking, identification, and enhanced operational efficiency.
Encoding Data
Securely encode essential information directly onto the label, allowing for quick access and accurate tracking of product details, inventory, and more.
