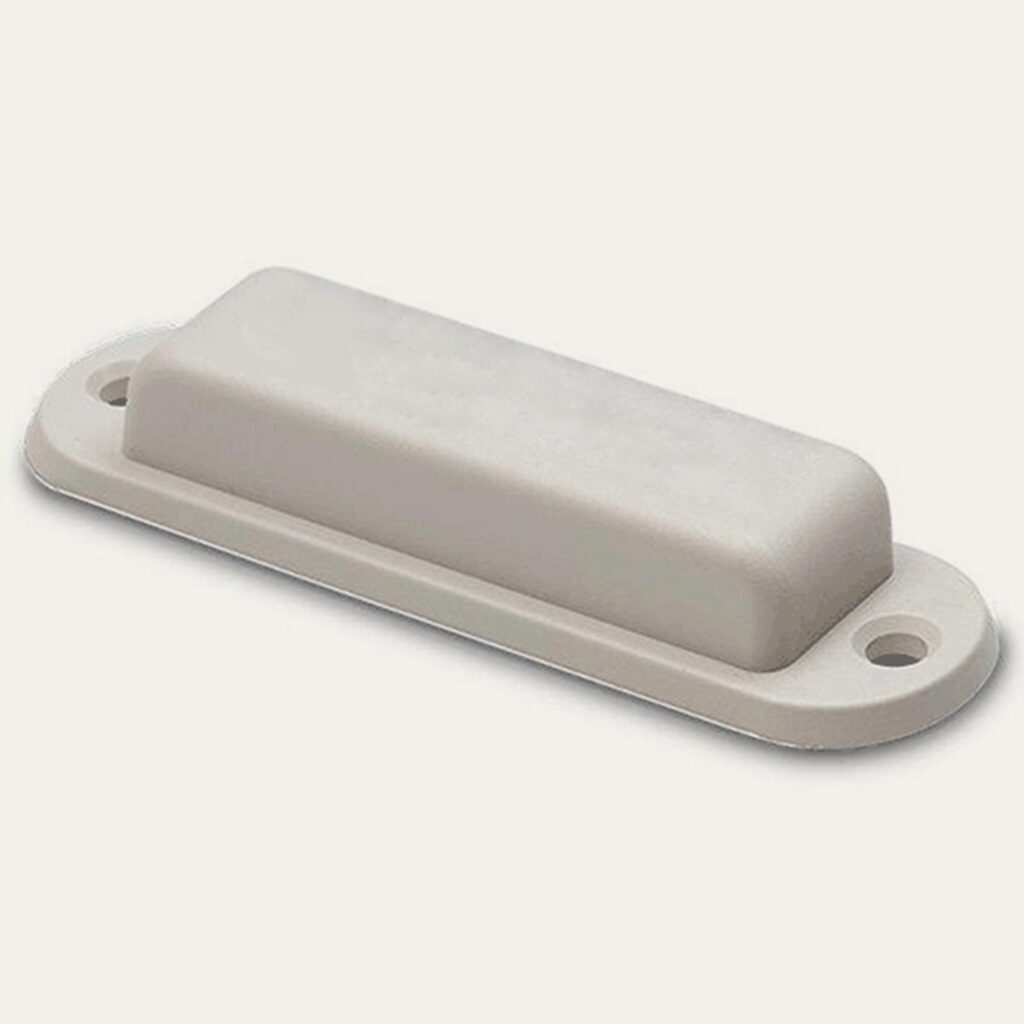

UHF Tags for Extreme Environments
UHF Tags are advanced general-purpose RAIN® UHF RFID transponders designed to deliver long read ranges (up to 33 m / 108 ft) on any surface material, including metal, plastic, and wood. These tags enable fast and accurate data capture, supporting large-scale logistics, asset tracking, and industrial operations with maximum efficiency. Built for the harshest conditions, EXO tags combine extreme ruggedness, waterproofing, and chemical resistance with omnidirectional performance. Whether tracking containers, roll cages, vehicles, or heavy-duty equipment, these tags withstand physical impact, high-pressure washing, and extreme temperature fluctuations—ensuring reliable performance where other tags fail.
Key Features
Extreme Durability: Withstands blunt/sharp impacts, outdoor exposure, high-pressure washing, and chemicals.
Universal Mounting Options: Can be securely fixed with screws, rivets, industrial adhesive, or welding.
Superior Read Range: Up to 33 m (108 ft) on metal and non-metal surfaces. 3D Antenna Design: Patented omnidirectional antenna ensures consistent readability in any orientation..
Technical Specifications
Operating Frequency: 860–960 MHz (broadband, worldwide use).
Tag Type: Passive RAIN® UHF RFID transponders.
Read Range: Up to 33 m (108 ft), depending on reader and environment.
Durability: Waterproof (IP68), resistant to UV, chemicals, pressure washing, impact, and extreme temperatures.
Form Factors: Mini (for tools, boxes, roll cages), EXO 2000/3000 (for heavy-use vehicles, containers, and extreme rugged environments).
Technical Specifications
Dimensions and Weight:
3.8 × 1.1 × 0.6 in (97 × 27 × 15 mm) Weld : 4.1 × 1.4 × 0.6 in (105 × 35 × 15 mm)
Materials:
High-impact plastic, Weld : stainless steel ring
Frequency:
865-956 MHz (worldwide)
Protocol:
UHF EPC Class 1 Gen 2, ISO 18000-6C, ISO 17364, DIN 40050-9
Chip Type:
Monza R6, M730, Monza 4QT, M730, Monza 4QT
Read distance:
Up to 32.8 ft (10 m)
Data Retention:
Up to 10 Years
Operating Temperature:
-40° to +185° F (-40° to +85° C)
Water Resistance:
IP68, IP69K, 176° F (80° C), 100 bar, 30 sek. 16 l/min
Affixes To:
All surfaces, including metal, plastic, wood
Places of Application
Supply Chain & Logistics:
Fast identification of pallets, roll cages, and large shipments during distribution.
Industrial Asset Tracking:
Long-range identification of tools, machinery, and equipment in harsh environments.
Vehicle & Container Tracking:
Ideal for trucks, heavy-duty vehicles, and waste or shipping containers.
Types of Material
ABS
EXO Tags are constructed with ABS (Acrylonitrile Butadiene Styrene) industrial-grade housing, a thermoplastic polymer widely used in automotive, electronics, and industrial equipment due to its exceptional impact resistance and toughness. ABS ensures the tags can absorb shocks and resist cracks even under repeated mechanical stress. In addition, the material provides strong resistance to outdoor elements, UV light, oils, and industrial chemicals, which makes it suitable for long-term deployments in demanding environments. The combination of lightweight design and structural strength allows ABS-encased EXO tags to maintain consistent RFID performance even after exposure to vibration, pressure washing, or accidental impact.
Types of Detailing on Labels/Tags
Logo Printing
Enhance your brand visibility with custom logo printing available on both the front and back of the labels, ensuring a professional and recognizable design for all your products.
Sequential Numbering
Add unique sequential numbers on the label or release paper for accurate tracking, identification, and enhanced operational efficiency.
Encoding Data
Securely encode essential information directly onto the label, allowing for quick access and accurate tracking of product details, inventory, and more.
